Parameters

The waveforms that the module will output are defined by parameters common to all waveform styles and by parameters specific to the chosen waveform style. The following are common parameters:

Before going into detail about the parameters, a brief explanation of how the module works will help you understand the parameters better. All waveform data is stored on the SRAM bank on the module.

The AWG272 RAMs are capable of storing for each channel 4 × 1,048,576 data words, each of size 12 bits. Each value in a waveform is represented as a 12-bit data word. Since there are 12 bits available, you have a maximum amplitude resolution of 4096 (212).

The AWG452 RAMs are capable of storing 8 × 1,048,576 data words, each of size 12 bits. Each value in a waveform is represented as a 12-bit data word. Since there are 12 bits available, you have a maximum amplitude resolution of 4096 (212).

The AWG472 RAMs are capable of storing for each channel 8 × 524,288 data words, each of size 12 bits. Each value in a waveform is represented as a 12-bit data word. Since there are 12 bits available, you have a maximum amplitude resolution of 4096 (212).

The AWG801 RAMs are capable of storing 16 × 524,288 data words, each of size 11 bits. Each value in a waveform is represented as an 11-bit data word. Since there are 11 bits available, you have a maximum amplitude resolution of 2048 (211).

The AWG872 RAMs are capable of storing for each channel 16 × 524,288 data words, each of size 11 bits. Each value in a waveform is represented as an 11-bit data word. Since there are 11 bits available, you have a maximum amplitude resolution of 2048 (211).


The actual chip creating the waveforms is one of the following:

AWG272: the Euvis MD652D or MD653D Digital-to-Analog Converter with 4:1 Multiplexers (MUXDAC). The waveform output data rate is the same as the input clock rate.

AWG452/472: the Euvis MD681S Digital-to-Analog Converter with 8:1 Multiplexers (MUXDAC). The waveform output data rate is the same as the input clock rate.

AWG801/872: the Euvis MD662H Digital-to-Analog Converter with 4:1 Multiplexers (MUXDAC). The waveform output data rate is twice the input clock rate.


The module creates waveforms by storing sequences of waveform data words onto the RAM bank (maximum of 4 × 1,048,576 or 8 × 1,048,576 words) and then "feeds" these data words into the MUXDAC chip. For the AWG272/452/472 a new data word is sent to each MUXDAC and the analog waveform is updated at every clock; each set of values will also be output for one clock. For the AWG801/872, a new data word is sent to the MUXDAC and the analog waveform is updated at every half clock; each set of values will also be output for one half clock.


Data Length

The Data Length parameter should always be greater than or equal to the number of data points in your waveform. It specifies the memory addresses to make available for the waveform, so this is the parameter that will determine how many waveform data values will be output. You can imagine the waveform as a series of data points. Each data value is output for 1 clock until we reach the last value in the waveform cycle. Go to the Data Length section to get a detailed discussion regarding these two parameters.

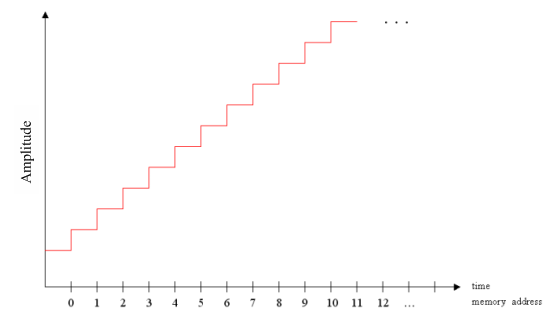

Ramp Steps



If the total number of waveform data values is greater than the Data Length, then the last waveform data value that is output is not the one you specify but, instead, is the Nth value, where N equals the Data Length. For example, if your waveform had 100 data values, but your Data Length were 4016 (decimal 64), then the actual last output value would be only the 64th value.

Therefore, assuming there is no delay, for proper waveform output based on your desired values, the necessary condition is:

Number of Data Values Data Length

In addition, recall that there are a limited number of memory addresses available (maximum memory depth) and some memory addresses are reserved, so:

AWG272: Number of Data Values Data Length 3,932,160
AWG452: Number of Data Values Data Length 7,864,320
AWG472: Number of Data Values Data Length 3,670,016
AWG801/872: Number of Data Values Data Length 7,340,032

Please see the Data Length section for a more detailed discussion regarding the relationship between these two parameters.

Delay

Delay specifies how many memory addresses to keep at the starting value before the waveform starts. For example if your Delay were “5” then the first 5 memory addresses would store values corresponding to the starting data value, and then at the 6th memory address, the waveform would begin. Please note that the delay is counted toward the data length. So if you set data length to 32 and had 30 data values but also set delay to 5, then the last 3 values in your waveform would not be output, since the delay and the data values together exceeded the data length.

Therefore the new Data Length relation becomes:

AWG272: Number of Data Values + Delay Data Length 3,932,160
AWG452: Number of Data Values + Delay Data Length 7,864,320
AWG472: Number of Data Values + Delay Data Length 3,670,016
AWG801/872: Number of Data Values + Delay Data Length 7,340,032



This is the guideline to use for determining proper Data Length.



Marker

The module features three markers, each with different characteristics. They are generated simultaneously with the waveform data, so the markers help you identify when a waveform is output. The marker settings are in the Waveform panel, just below the Data Length box, and allow you to choose when, and for how long, the signals go active.

Markers are useful as diagnostic tools. Markers are ONLY output when there is waveform generation. If you have a marker enabled but you detect no Marker signals, then it means that there is no waveform output.

Marker 1 features 1.8 V TTL (rail-to-rail) logic level. Marker 1 is generated as part of the waveform data, so there is no delay and, in fact, slightly precedes the corresponding waveform output, due to the delay from the latching of the data in the MUXDAC to the analog output. This latency is about 2-3 nanoseconds at the earliest sampling of the waveform data. The signature file records settings for optimal timing of samples, which may result in a waveform output latency up to 3 clocks later than the latency at the earliest sampling opportunity. For instance, if the input clock is 1 GHz, the latency changes by 1 nanosecond at each change in the SEL setting on the Signature panel.

Marker 2 and Marker 3 both feature 3.3 V LVTTL (rail-to-rail) logic levels. These higher voltage levels are compatible with most instruments, but there is a slight delay, about 6‑8 nanoseconds, compared with Marker 1.
Markers 2 and 3 can be disabled and when disabled will remain low. To disable Marker 2 or 3, uncheck the corresponding E enable box in the Waveforms panel.
Markers 2 and 3 also feature optional reverse polarity if an active low marker is desired. To make Marker 2 or 3 active low, uncheck the corresponding P positive polarity box in the Waveforms panel.
