Multiple Board Operation -

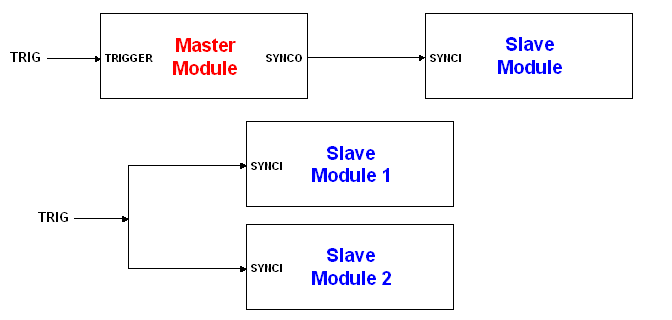

The module can be configured as a Master module to activate other modules configured as Slave modules. By default, the module is in Master mode. Connecting two or more boards in a Master-Slave configuration facilitates synchronization between the output waveforms.

Synchronization
Configurations
Operation Example
