Arbitrary Waveform Generator - AWG452

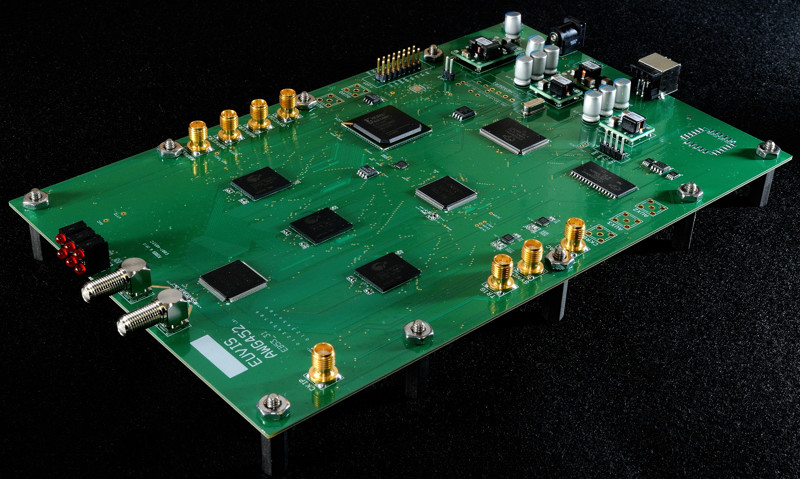

General Description

The Euvis AWG452 modules generate arbitrary CW waveforms with sampling rates up to 4 GSPS. The on-board SRAMs provide up to 8M x 12-bit data memory. The AWG modules can be controlled by a PC via a USB interface. The standard RF input is a single-ended clock source CK, which can be operated up to 4 GHz with minimum power of 6 dBm. The RF outputs of the module are comprised of differential analog outputs, with 50-Ω back termination. The module accepts a high-speed trigger signal and generates three programmable marker signals. The waveform generation can be in continuous or burst/pulse mode. The waveform contents can be dynamically changed using the user page selection. Programmable profile option offers further programatic controls of user pages, loop repetitions, and auto trigger periods. The companion API provides an interface for software development.

Key Features

Applications

The flexibility of Euvis AWG modules to generate arbitrary patterns with high sample rates, dynamic page selection, and continuous or burst mode operation allow the AWG to be used for a variety of applications, such as:


Graphical User Interface Application

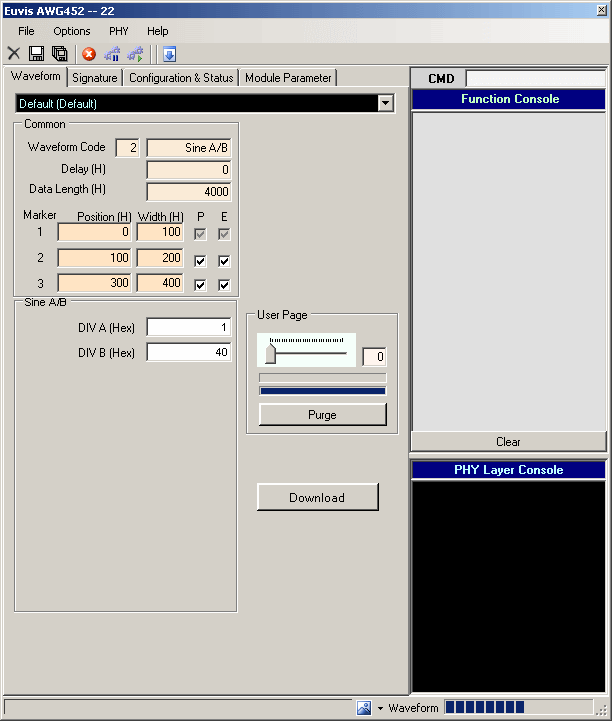

GUI Application

» To download the AWG Software, API, and Manual, please click here.


Functional Specifications

GENERAL
DAC Resolution 12 bits
Waveform Generation Modes Continuous
Triggered Continuous
Triggered Burst
User Interface USB
GUI for Windows XP and Windows 7
INPUT CLOCK
Type Single Ended, 50-Ω terminated
Connector Type SMA
Frequency Range Standard: 4 GHz
Optional: 2 ~ 4 GHz
Power Level 6 to 12 dBm (9 dBm typical)
OUTPUT
Type Differential, 50-Ω terminated
Connector Type SMA
Output Data Rate Standard: 4 GSPS
Optional: 2 ~ 4 GSPS
Output Level (DC) -635 mV to 0 V
Output Power (RF) -4 dBm to 0 dBm
Residual Phase Noise @ 10kHz from Carrier -130 dBc/Hz
Output Return Loss 15 dB
TRIGGER
Connector SMA
Source External or Software
External Trigger Level LVCMOS/LVTTL 3.3V
WAVEFORMS
Max Waveform Length 8,323,200 samples
Minimum Waveform Length (continuous mode) 128 samples
Minimum Waveform Length
(burst mode)
768 samples
Shorter waveforms can be achieved by Null padding
MARKERS
Number of Markers 3
Marker 1 Level LVCMOS/LVTTL 1.8V
Marker 2 Level LVCMOS/LVTTL 3.3V
Marker 2 Additional Features Polarity, Enable, Filter
Marker 3 Level LVCMOS/LVTTL 3.3V
Marker 3 Additional Features Polarity, Enable
Marker Length User defined
Minimum Marker Length 32 samples
API
Version Euvis API 2.0
CLR Language Support Visual C++
Visual C#
Visual Basic
Visual J#
Third Party Support Compatible with Matlab 2010a and LabView
OPTIONS
Programmable profiles
Variable clock frequency for external clock (2 ~ 4 GHz)
Internal 4 GHz clock with pre-selected 10 ~ 100 MHz reference clock



Electrical Specifications

Parameter Symbol Min Typical Max Unit
Output Level Vout -635   0 mV
Output Power Pout -4   0 dBm
Output Phase Noise Nφ     -130 dBc/Hz
Output Port Return Loss RLRF   15   dB

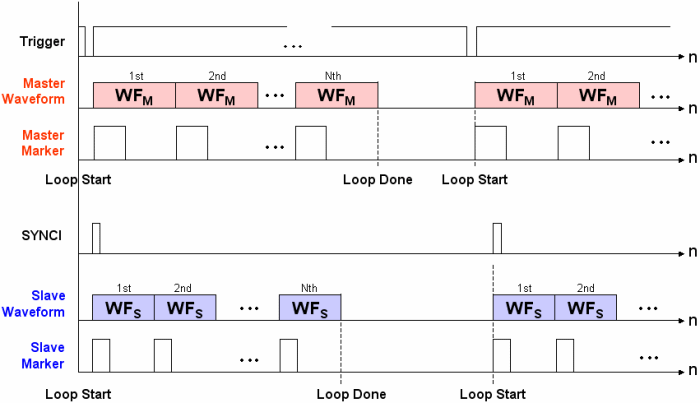

Multiple AWG's Synchronization:

Multiple AWG's can be operated to generate synchronized waveforms. The synchronization requires:

[1] All AWG's use the same clock source, or use clock sources phase-locked to each other. If use internal clock, all AWG's must use the same reference clock.

[2] All AWG's use the same trigger signal.

[3] The trigger signal is phased-locked (aligned) to the /32 clock. The SYNCO signal is a /32 clock, which can be used to phase lock the trigger signal.

[4] Fine adjustment can be done by specifying the delay in common parameters to further minimize the relative delay of AWG's outputs.

For details, please see synchronization.



Programmable Profiles (*option)

In burst mode, the AWG can only output one waveform specified in the user page for each trigger signal. To change the waveform, users have to set the user page in the operations. Setting the user page or other relevent parameters may not be practical for tight timing and sophisticated waveform sequences.

With programmable profiles, users can specify user page sequences, loop counts, and auto trigger periods in the "Programmable Profiles" dialog window in the GUI or by API methods.

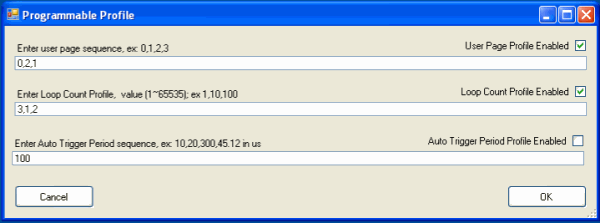

Programmable Profiles Window


Each separate waveform is downloaded to separate user pages and the sequence in which the waveforms are output is defined in the "User Page Sequence" textbox at the top. In the example above, the sequence of waveforms would be Userpage 0, Userpage 2, Userpage 1, Userpage 0, Userpage 2 and so on.

Users can also define the loop count for each trigger signal. The loop count sequence is defined in the "Loop Count Sequence" textbox. In the example above, Userpage 0 will loop 3 times back to back for the first trigger signal, then Userpage 2 will loop once for the second trigger signal, and finally, Userpage 1 will loop twice for the third trigger signal. The number of loop count sequence does not necessarily have to match up with the number of user page sequence. For example you can have a sequence of 3 user pages but you may only have 2 loop count sequences. If the Loop Count Sequence was defined as "3,1" in the above then Userpage 0 will loop 3 times back to back, then Userpage 2 will loop once, then Userpage 1 will loop 3 times, then Userpage 0 will loop 1 time and so on.

The third profile is for the auto trigger period. In normal operation, auto trigger period is a constant, which is specified in the Auto Trig textbox. With the programmable profile option, users can program the periods of auto trigger signal to match the timing requirements for compound waveforms generated by the userpage and loop count profiles.

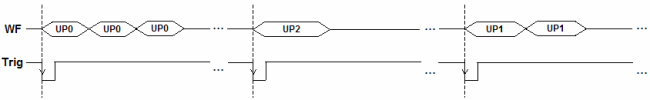

The image below shows a graphical representation of the waveforms depicted in the GUI screenshot above.


Programmable Profiles

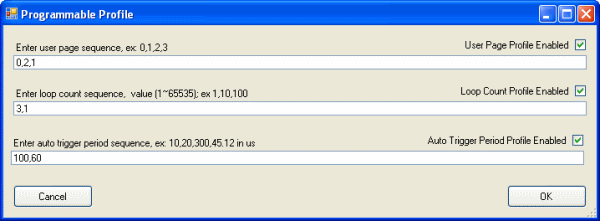

The GUI screenshot below demonstrates a different programmable profile. For this profile, you will notice that there are 3 user pages but only 2 values each for the loop count and auto trigger sequences.


Programmable Profiles

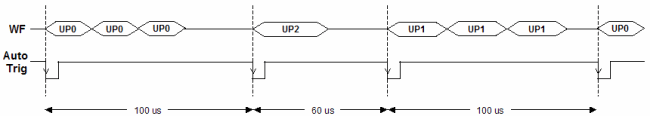

For this example, the Userpage sequence will be: Userpage 0, Userpage 2, Userpage 1, Userpage 0, Userpage 2, Userpage 1, and so on. The loop count sequence will be: 3 loops, 1 loop, 3 loops, 1 loop, 3 loops, and so on. The auto-trigger period sequence will be: 100 us, 60 us, 100 us, 60 us, 100 us, and so on.


Programmable Profiles



Enclosure Information

Enclosure Dimensions
Length 14.0 inches
Width 8.25 inches
Height 3.50 inches

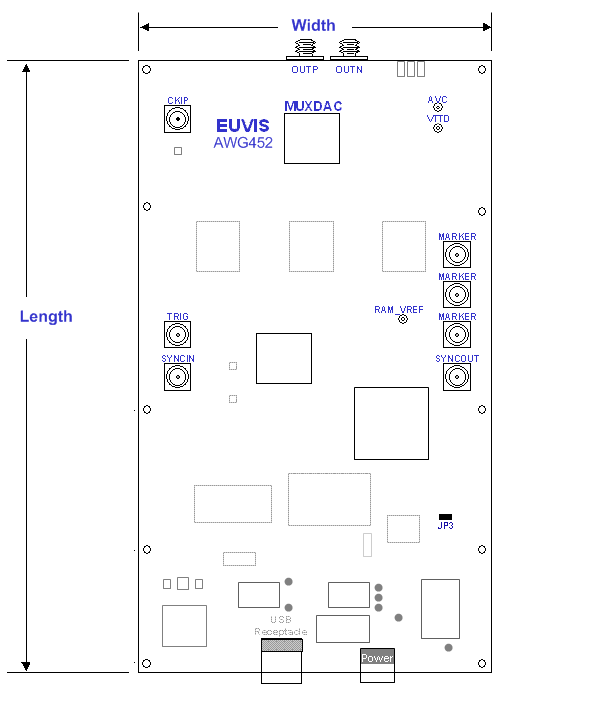

Enclosure Drawings


Front Panel

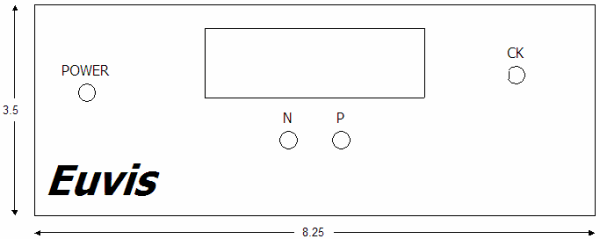

Enclosure Front View


Back Panel

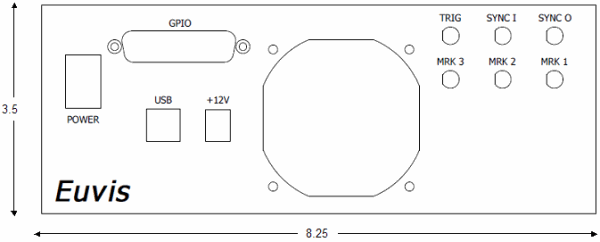

Enclosure Back View


Side Panel

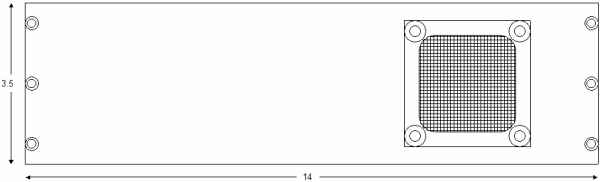

Enclosure Side View



Detailed Datasheet:

To get the complete AWG452 datasheet, please click here.
