General Description
The ARTS_BB 971 modules capture, process, and transmit I+Q CW waveforms with sampling rates up to 2.2 GSPS. Captured waveforms are processed to simulate automobile targets up to 4 independent targets. The processes include amplitude controls, Doppler frequency shifts, and delay/distance controls. With on-board 1 G x 12-bit memory, the ARTS_BB 971 provides time-domain and frequecy-domain analysis, such as instantaneous frequency and spectragram. The ARTS_BB 971 can be controlled by a PC via a USB interface. The clock input is a single-ended clock source CK with a minimum power of 9 dBm. The RF inputs for the receiver are comprised of two pairs of differential analog inputs, RIP and RIN, and RQP and RQN. The RF outputs from the transmitter are comprised of two pairs of differential analog outputs, TIP and TIN, and TQP and TQN. The companion API provides an interface for software system integrations.
Ordering and Pricing Information
For quotations, availabilities, and quantity-specific orders, please contact us
Key Features
- 2 GHz processing bandwidth
- Up to 4 independent simulation targets
- Dynamic and Static target simulations
- Time-domain capture and spectrum analysis: FFT, Spectragram, power analysis, and Instantaneous frequency analysis
- Delay rage: 8 m to 2.2 km
- Delay resolution: 13.6 cm
- Velocity range: +/- 1000 km/hr
- Velocity resolution: 1 km/hr (0.51 Hz)
- Transmit/Receive gain control: 62 dB
- In-phase(I) and quadrature(Q) phase synchronization of inputs and outputs
- 1G x 12-bit memory depth with multi-page configurations
- USB 2.0 compliant interface (other interfaces available upon request)
- 30 W power consumption with a 12V power supply
- Metal enclosure dimensions: 10.5 x 3.5 x 11 (W x H x L) inch
- Companion API and software drivers for easy system development
Applications
- Automobile Radar Target Simulation

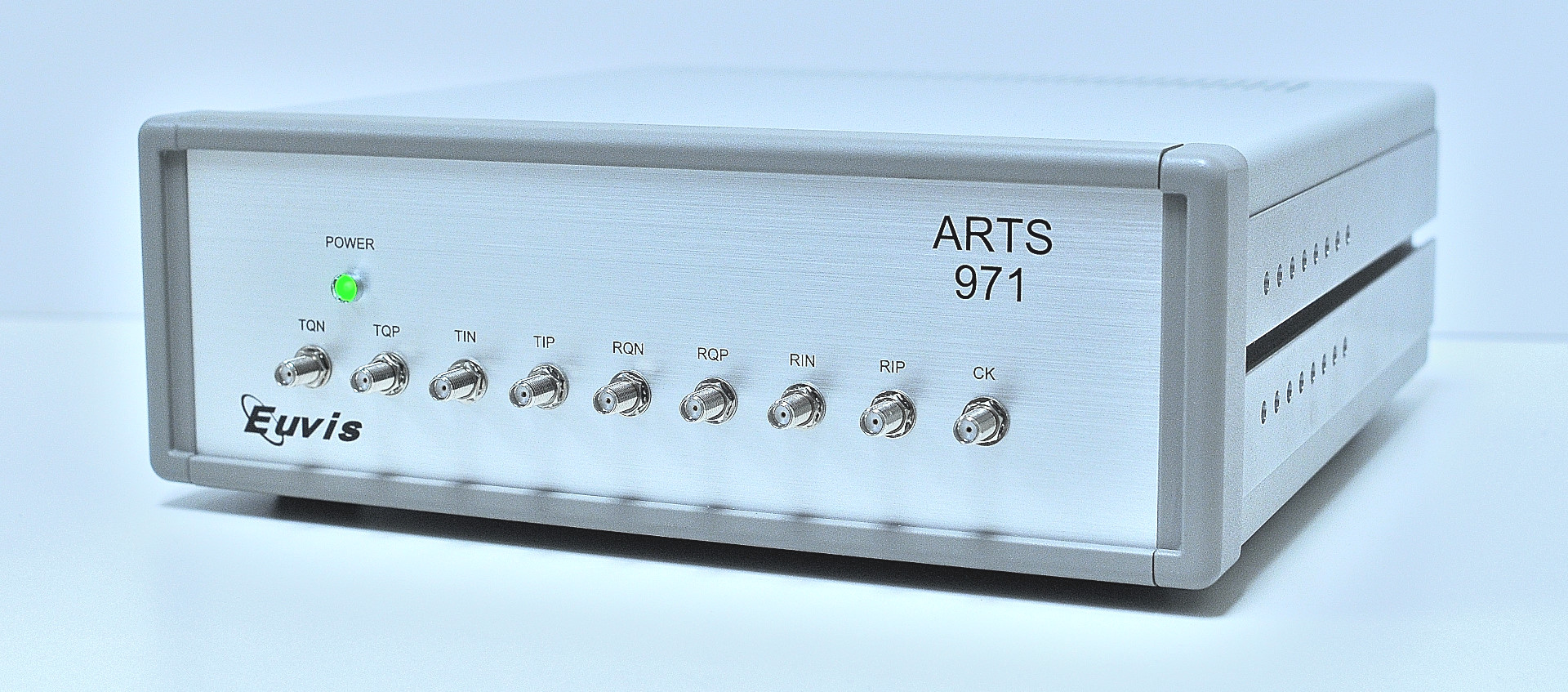

Module Photo:

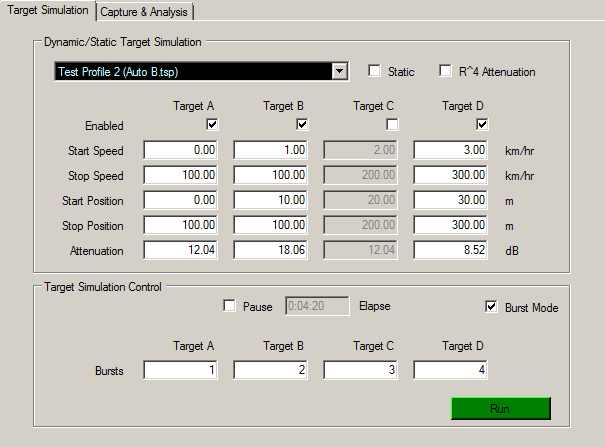

Graphical User Interface
Surpport dynamic target simulations
In dynamic simulations, four targets can be independent programmed with speeds, distances, and sizes versus time. Target simulations can be conducted with cyclic repetitions or with finite bursts. Simulations can be pause and stepped thru. In static simulation, target are programmed with preset speeds, distances, and sizes.

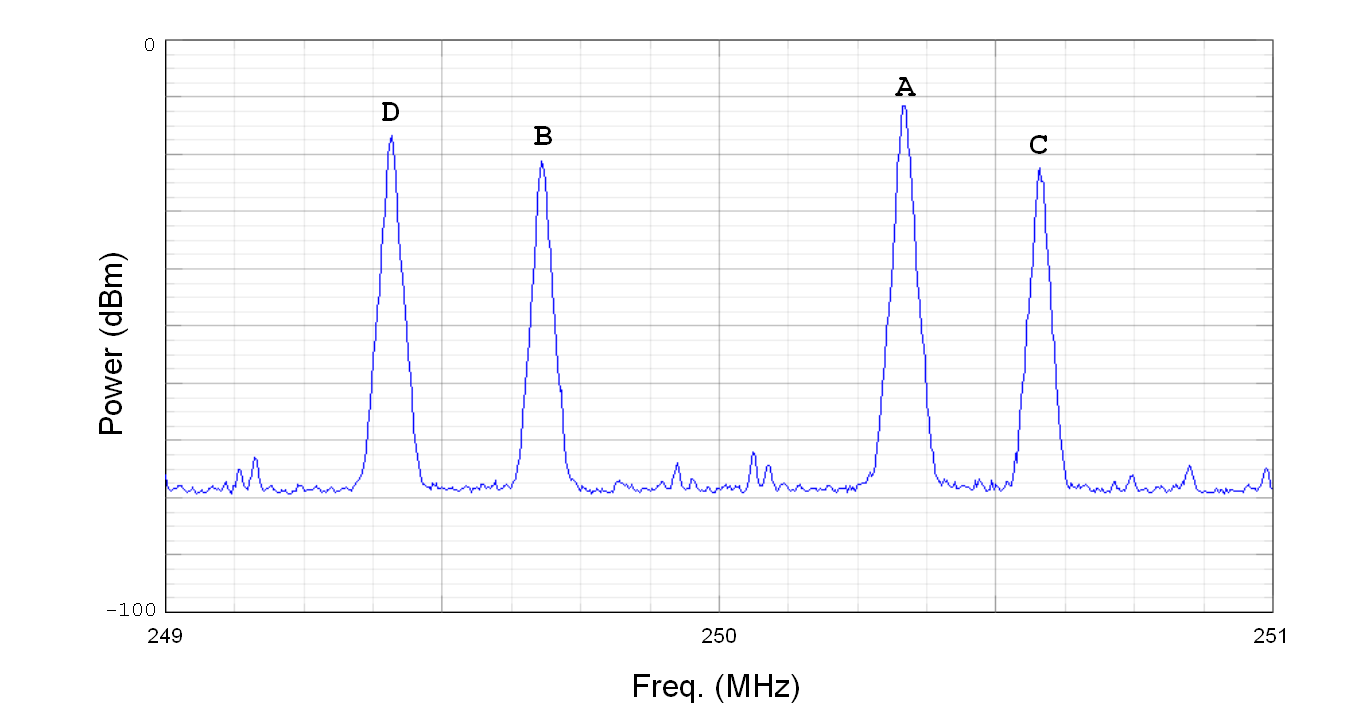

Measured spectrum of four targets(A, B, C, and D) with Doopler shifts.

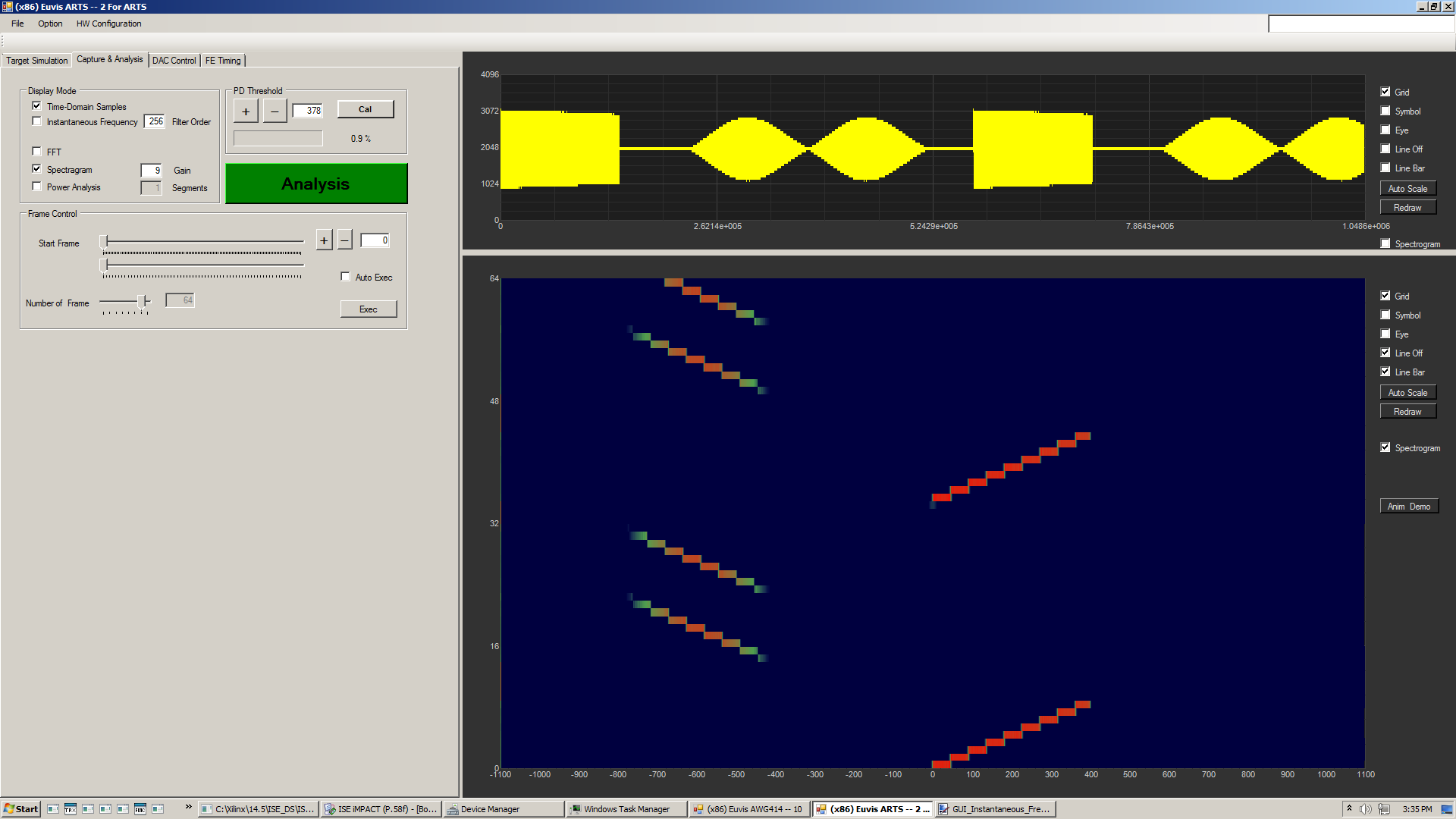

Capture time-domain waveform and Spectragram

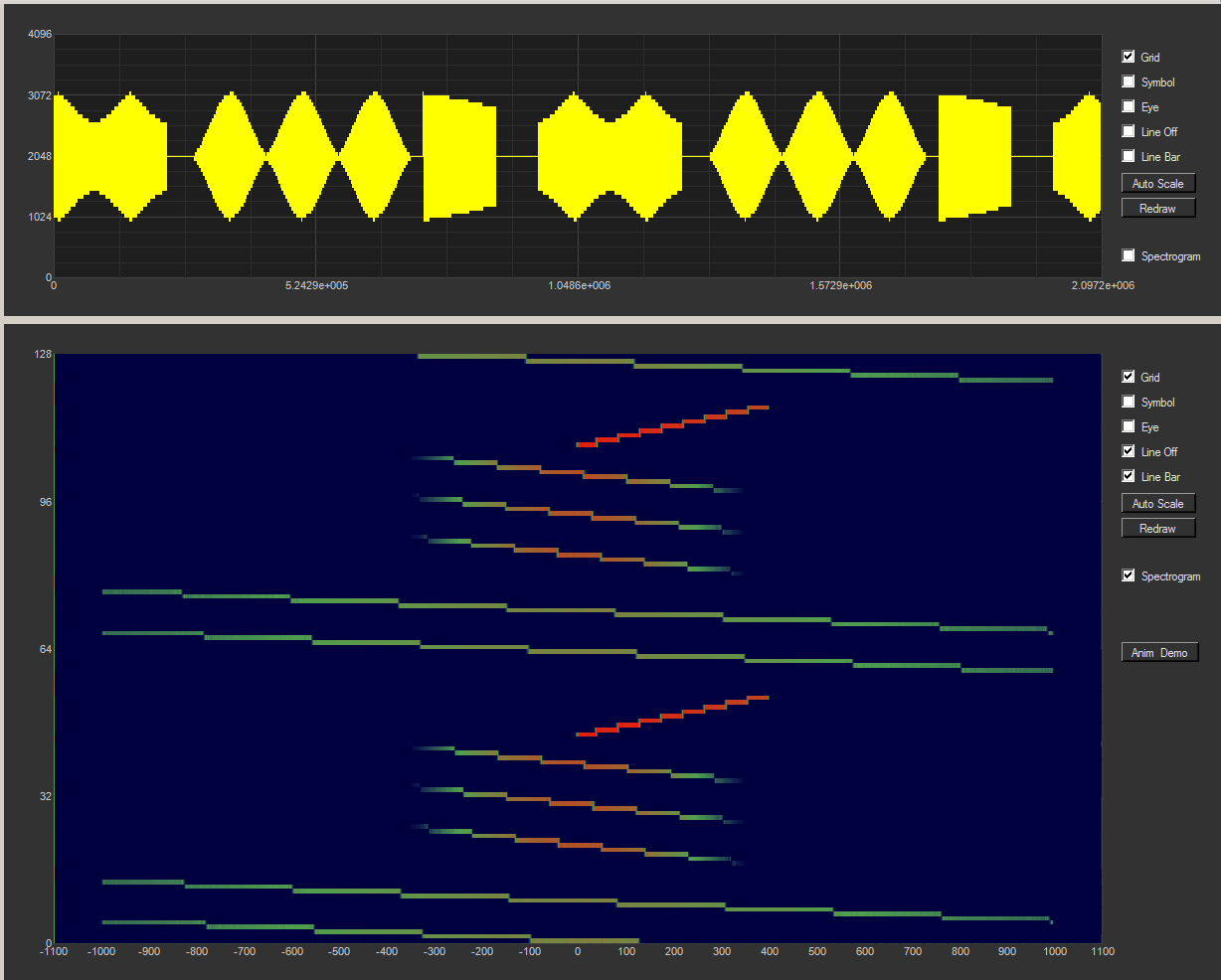

Three FMCW incoming waveforms with different repetitions generated by AWG414 with Programmable Profile option. [1] DC ~ 400 MHz FMCW with single repetition, [2] +1000 ~ -1000 MHz FMCW with two repetitions, and [3] +400 ~ -400 MHz FMCW with amplitude modulation in three repetitions.

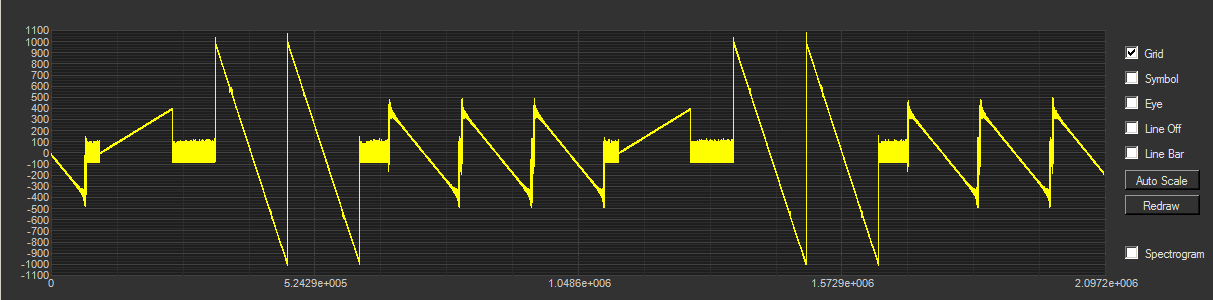

Instantaneous frequency analysis
Functional Specifications
| GENERAL | |
| Sampling Rate | 2.2 GSPS |
| Processing Bandwidth | 2 GHz |
| Standard Independent Simulation Targets | 4 |
| Dealy Range | 8 m ~ 2.2 km |
| Dealy Resolution | 13.6 cm |
| Velocity | > +/- 1000 km/h |
| Velocity Resolution | 1 km/hr |
| Gain Control | 62 dB |
| Waveform Memory | 1G x 12b |
| Standard Interface | USB |
| Optional Interface | PCIe |
Enclosure Information
| Enclosure Dimensions | |
| Length | 11 inches |
| Width | 10.5 inches |
| Height | 3.50 inches |
Enclosure Drawings

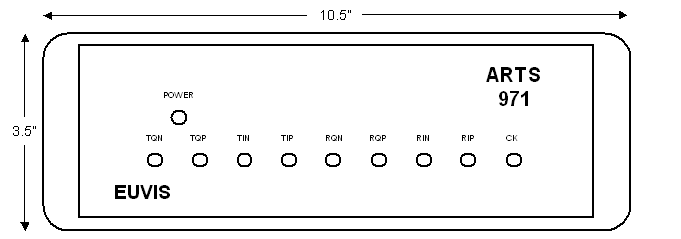

Front view

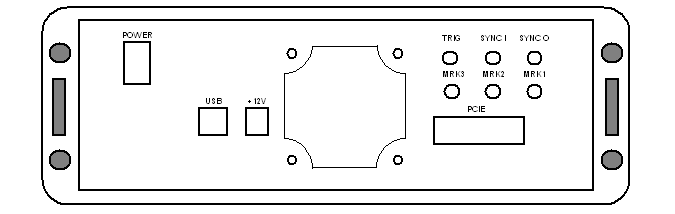

Back view

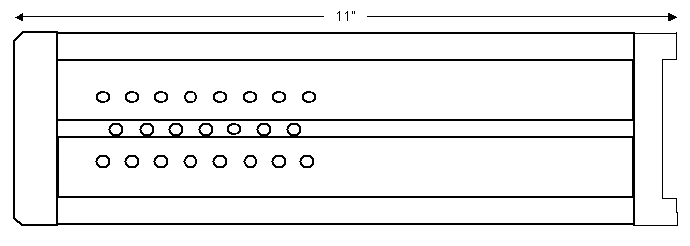

Side view

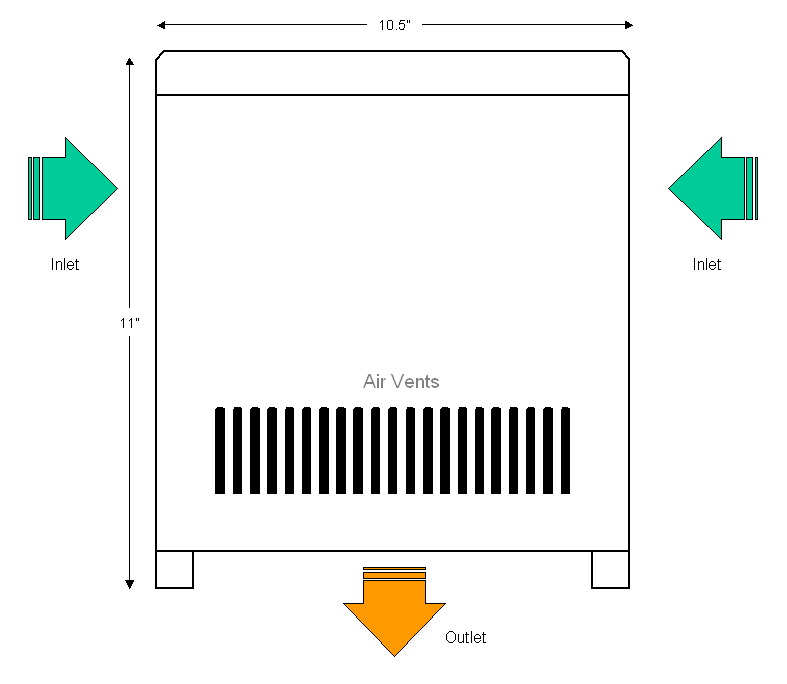

Top view with air flows
