General Description:
The WM401 - MuxDAC Evaluation Board - generates CW sinusoidal waveforms at frequencies of fractions of the sampling clock, from 1/64 to 31/64 of the data sampling rate. The WM401 can be controlled by a PC via a USB interface. The module comprises a MUXDAC, MD652D or MD662H, which has 12-bit amplitude resolution. The module can be clocked from 2 GHz to 4 GHz. At a 4 GHz clock, the sampling rate is 4 GSPS for the MD652D and 8 GSPS for the MD662H. It is equipped with a Lattice SC LFSC3GA25E-7FN900CES FPGA, which is programmed to generate CW sinusoidal waveforms only and is not for re-programming. or complex waveform generation, please use the Euvis arbitrary waveform generators (AWG). The WM401 is powered by a 12V wall-mount AC adapter.
Key Features:
- Differential analog outputs
- 12-bit amplitude resolution
- CW waveform frequency: 1/64th ~ 31/64th of the sampling rate
- Friendly control by graphical user interface (GUI)
- USB 2.0 compliant interface (other interfaces available upon request)
- +12V DC wall-mount power supply included
- Clock rate 2GHz to 4 GHz

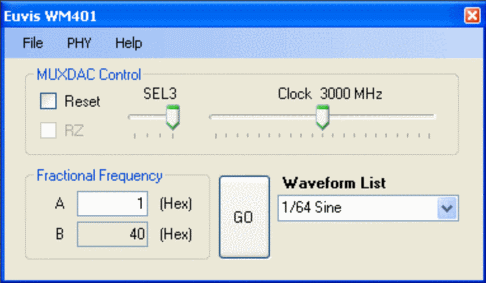

Graphical User Interface Application:
Dimensions:
|
Length |
5.500 inches |
|
Width |
6.375 inches |
|
Height |
1.75 inches with heat sink (0.6 inches without heat
sinks) |
|
Weight |
Less than 1 lb |
|

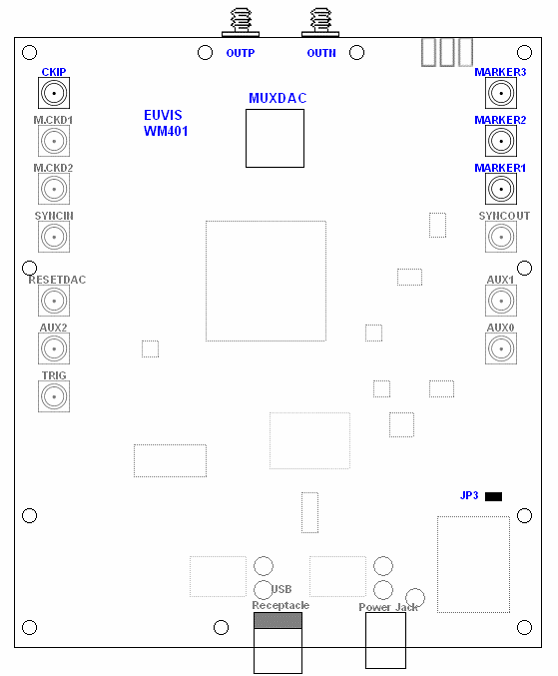

11 Mount
Hole Locations
(Coordinates in Mils)
(Origin
is located at lower left corner) |
250, 1375
250, 6125
250, 3875
250,250
1750,6125
2000,250
3750,6125
5250,250
5250,1375
5250,3875
5250,6125 |
